Premium Certified ISO:23351 CLASS A Booths
A booth series built for Sustainability, Acoustics, and Modularity.
Comes standard with the Flex Desk, SAM Single is ideal for focused work, private calls, or a quiet reset, creating a comfortable personal retreat within the workplace.

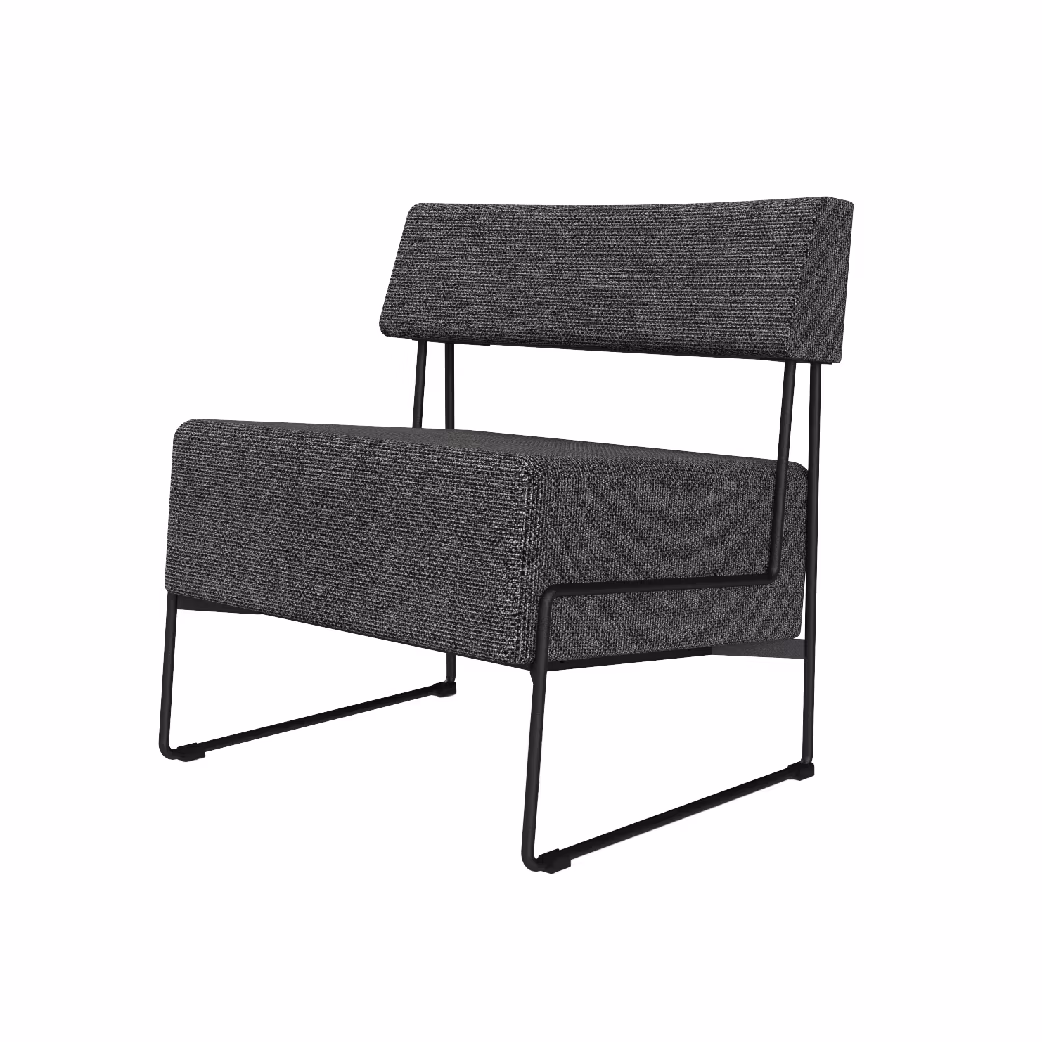

An ideal two-person setup designed for clear conversations, focused recording, and content creation. Paired with the optional Flip Desk and Milli Sofa to suit different needs.

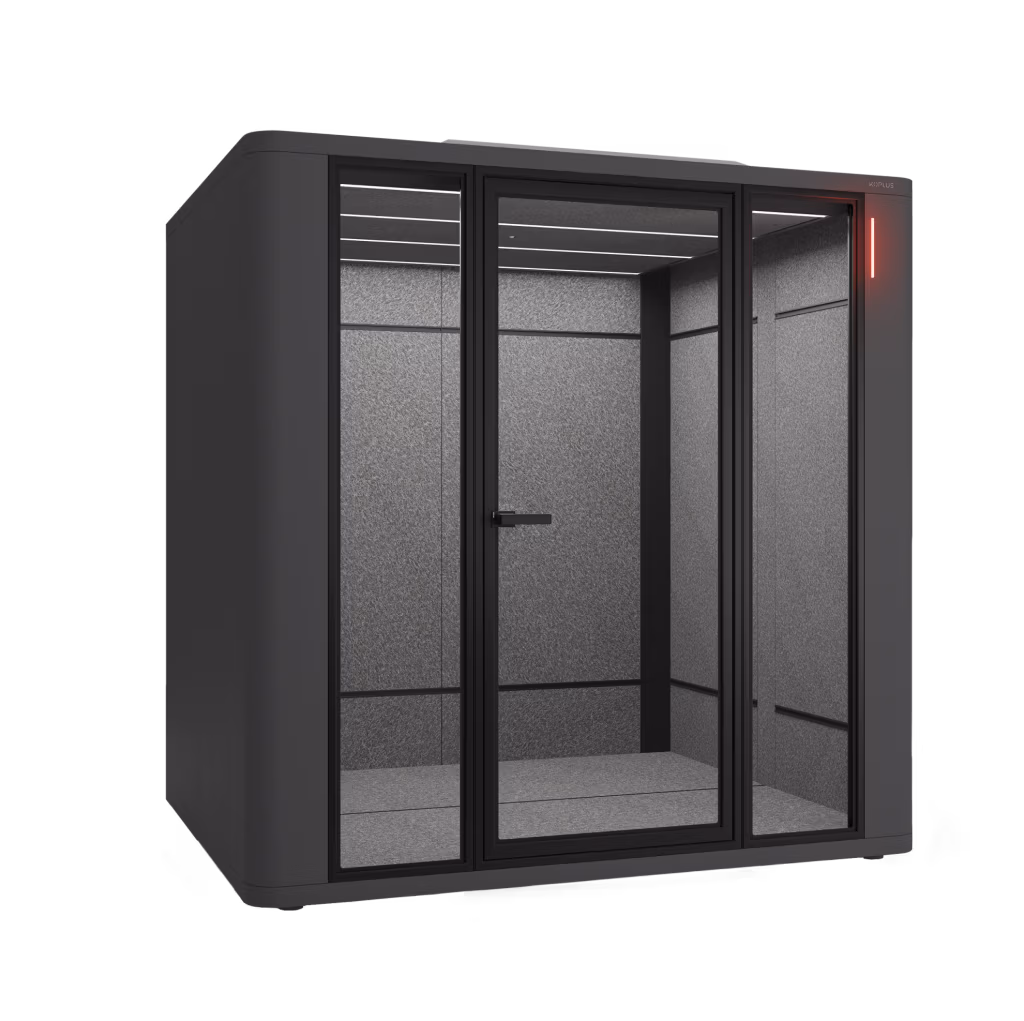

Designed to support both collaboration and concentration across a variety of functions, SAM Large can be transformed into an executive office, meditation space, or media production setting.
Blending soft curves with sleek lines, SAM Booth brings softness and structure into perfect harmony.
Available in 12 exterior colour options, SAM offers a premium, contemporary appearance. Magnetic interior PET panels allow easy DIY installation, while back panels can be configured in glass or solid wall options to suit different layouts and functions.
Wrapped in a classic and refined design language, SAM embodies our commitment to creating solutions that combine premium acoustic performance, thoughtful functionality, and a responsible vision for the future.

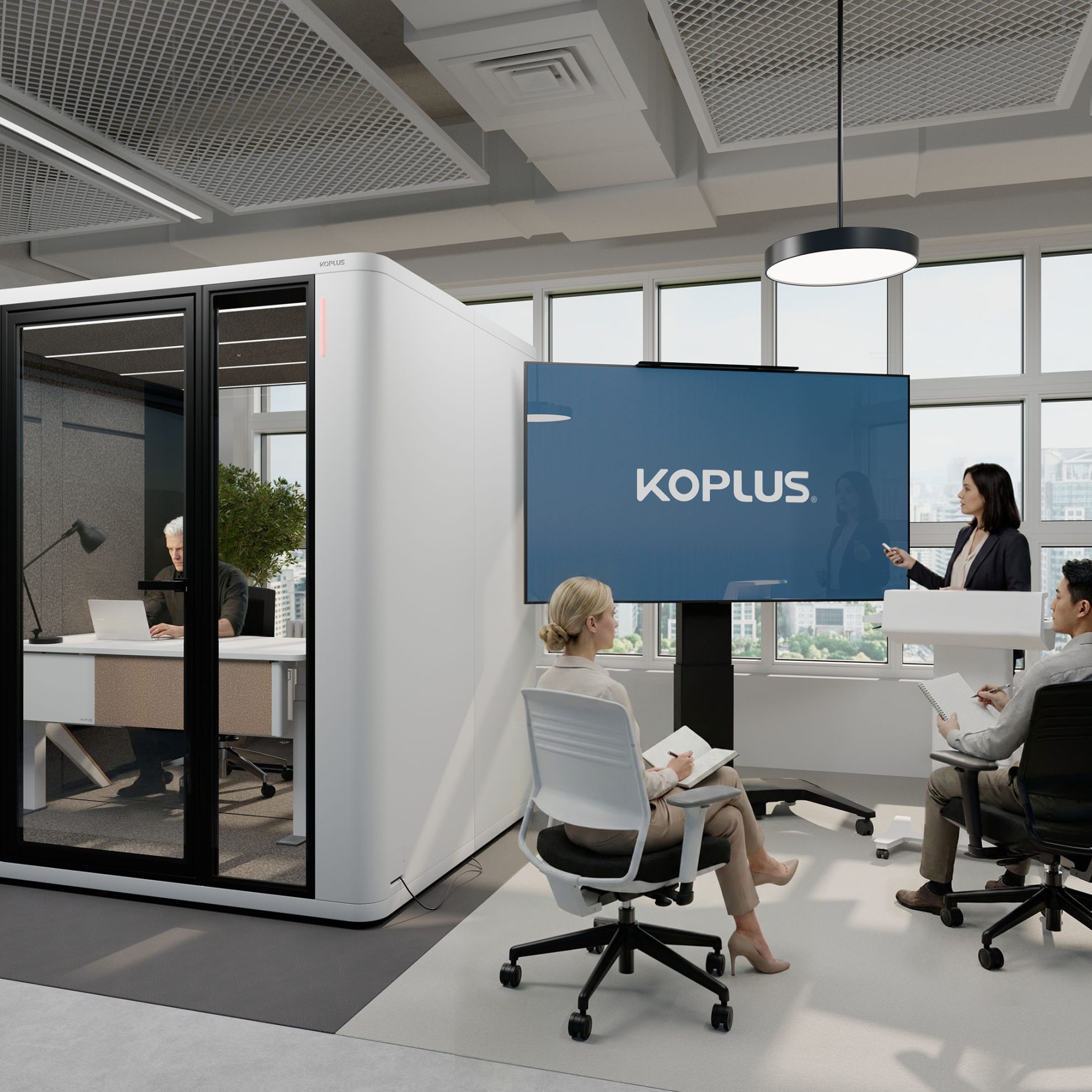

Certified Class A according to ISO 23351-1, SAM delivers premium acoustic performance for concentration and privacy.

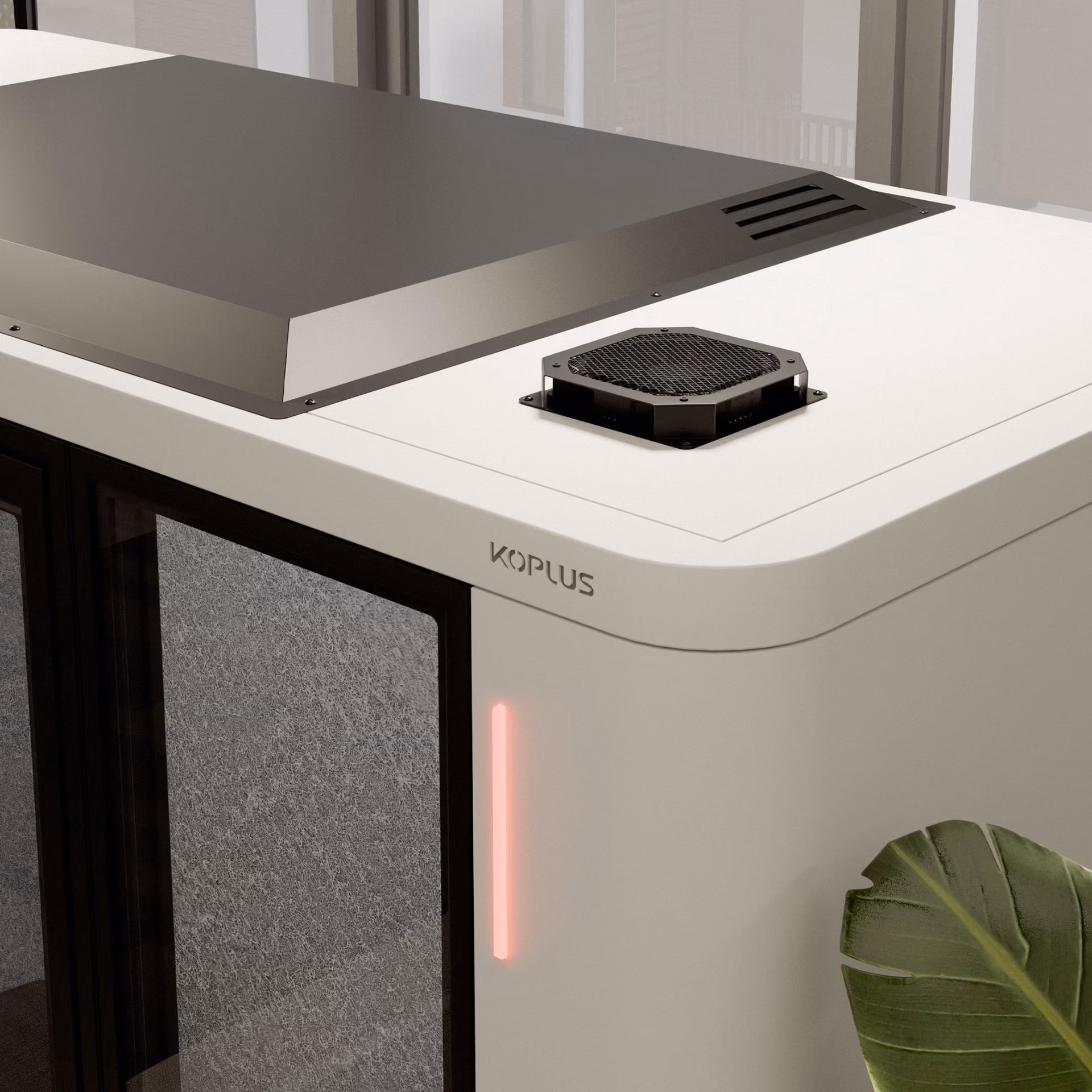

An advanced air circulation system with five adjustable fan speed levels ensures a comfortable and refreshing user experience.

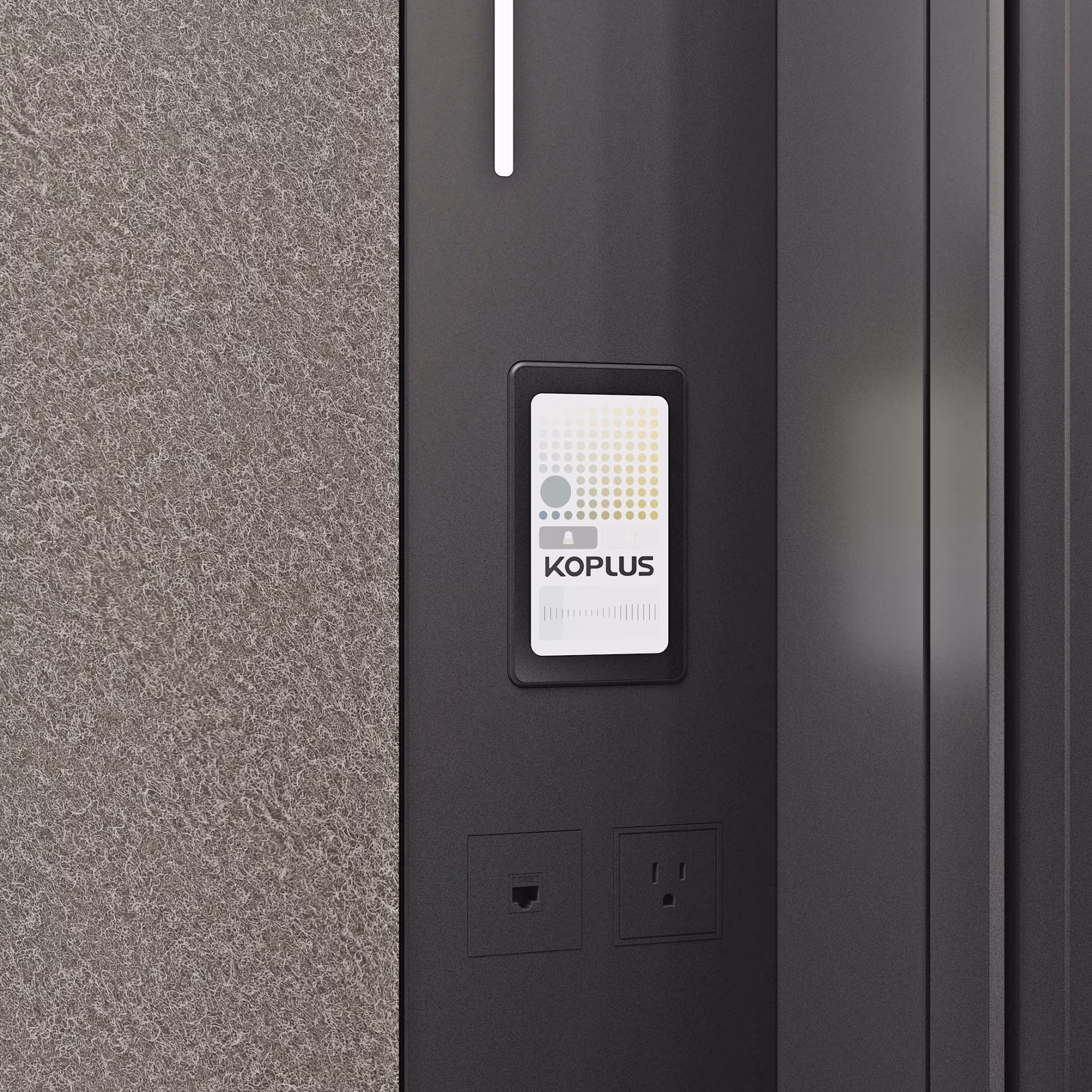

The touchscreen control panel allows users to adjust light brightness, colour temperature, and fan speed, with a user interface that supports 14 languages.

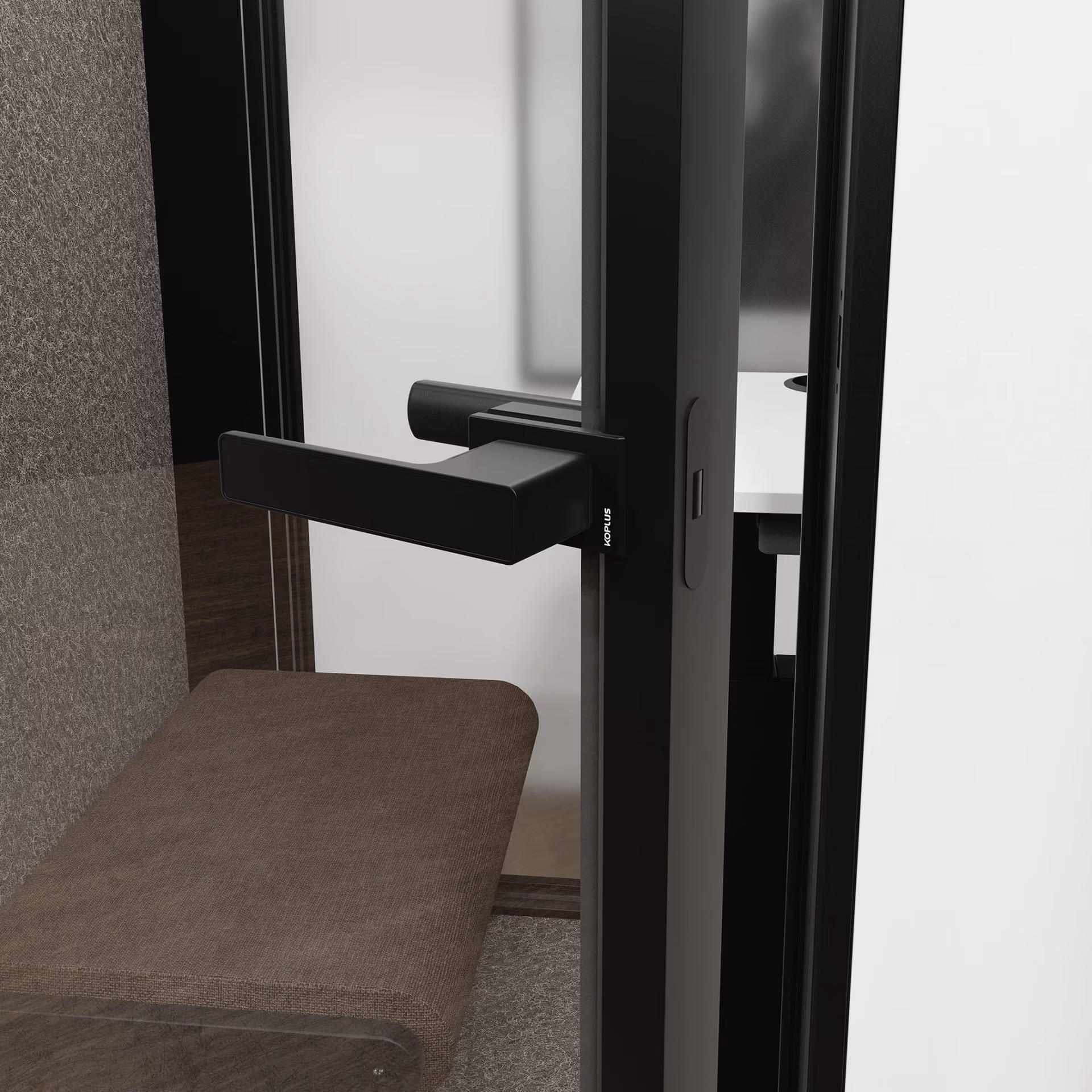

Hidden door hinges, smooth door closing, and a magnetic handle create a clean, refined look and a seamless user experience. An optional digital lock is available.

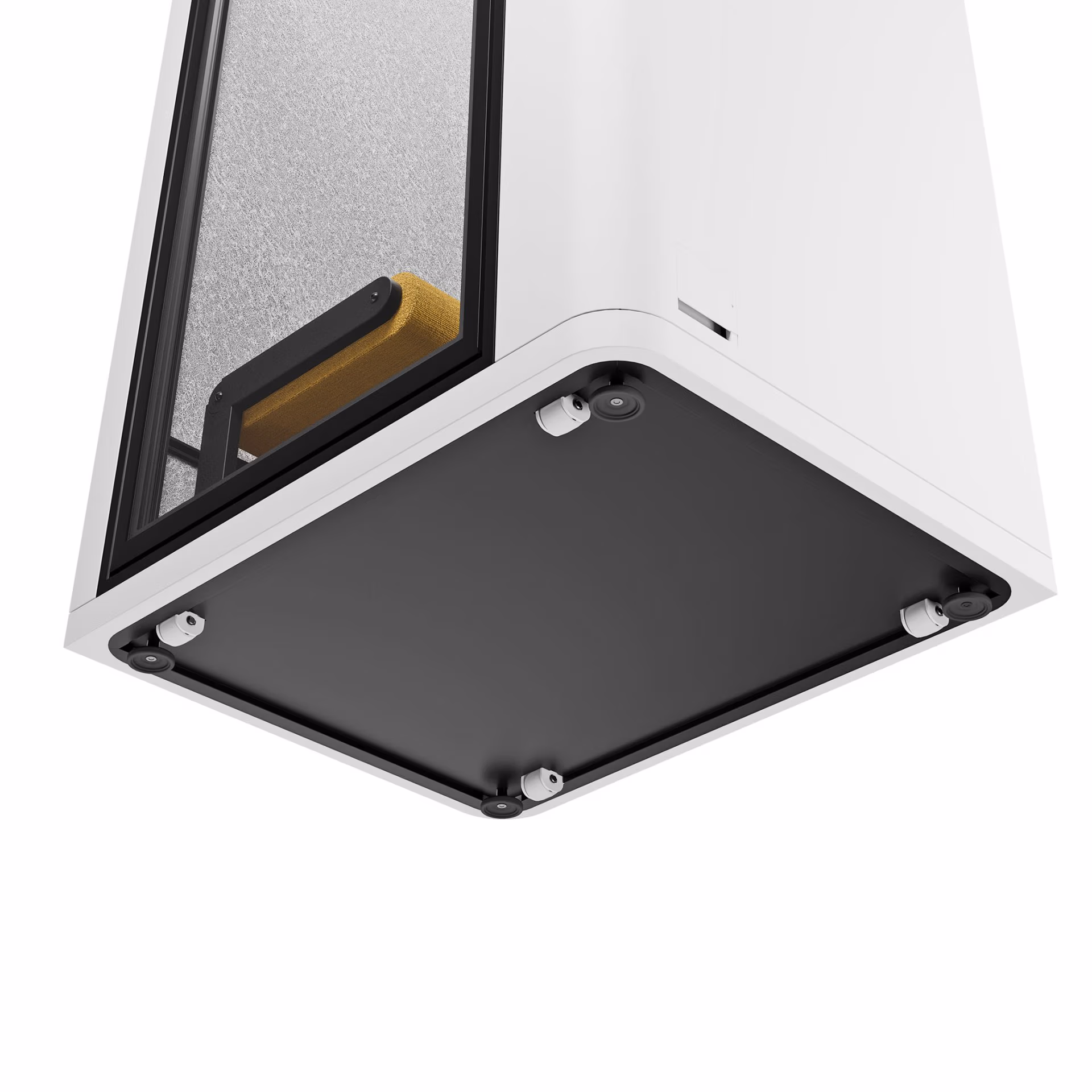

Equipped with castors and adjustable levelling feet, SAM is designed for easy repositioning and precise floor levelling.
Enhanced lighting design with top light and ambient glow creates a more comfortable and elevated interior atmosphere.
Certified Class A according to ISO 23351-1, SAM delivers premium acoustic performance for concentration and privacy.
An advanced air circulation system with five adjustable fan speed levels ensures a comfortable and refreshing user experience.
The touchscreen control panel allows users to adjust light brightness, colour temperature, and fan speed, with a user interface that supports 14 languages.
Hidden door hinges, smooth door closing, and a magnetic handle create a clean, refined look and a seamless user experience. An optional digital lock is available.
Equipped with castors and adjustable levelling feet, SAM is designed for easy repositioning and precise floor levelling.
Enhanced lighting design with top light and ambient glow creates a more comfortable and elevated interior atmosphere.
One of our core principles is delivering quality and being transparent about it. We make sure that our certifications are well earned with our persistence in product quality and manufacturing.

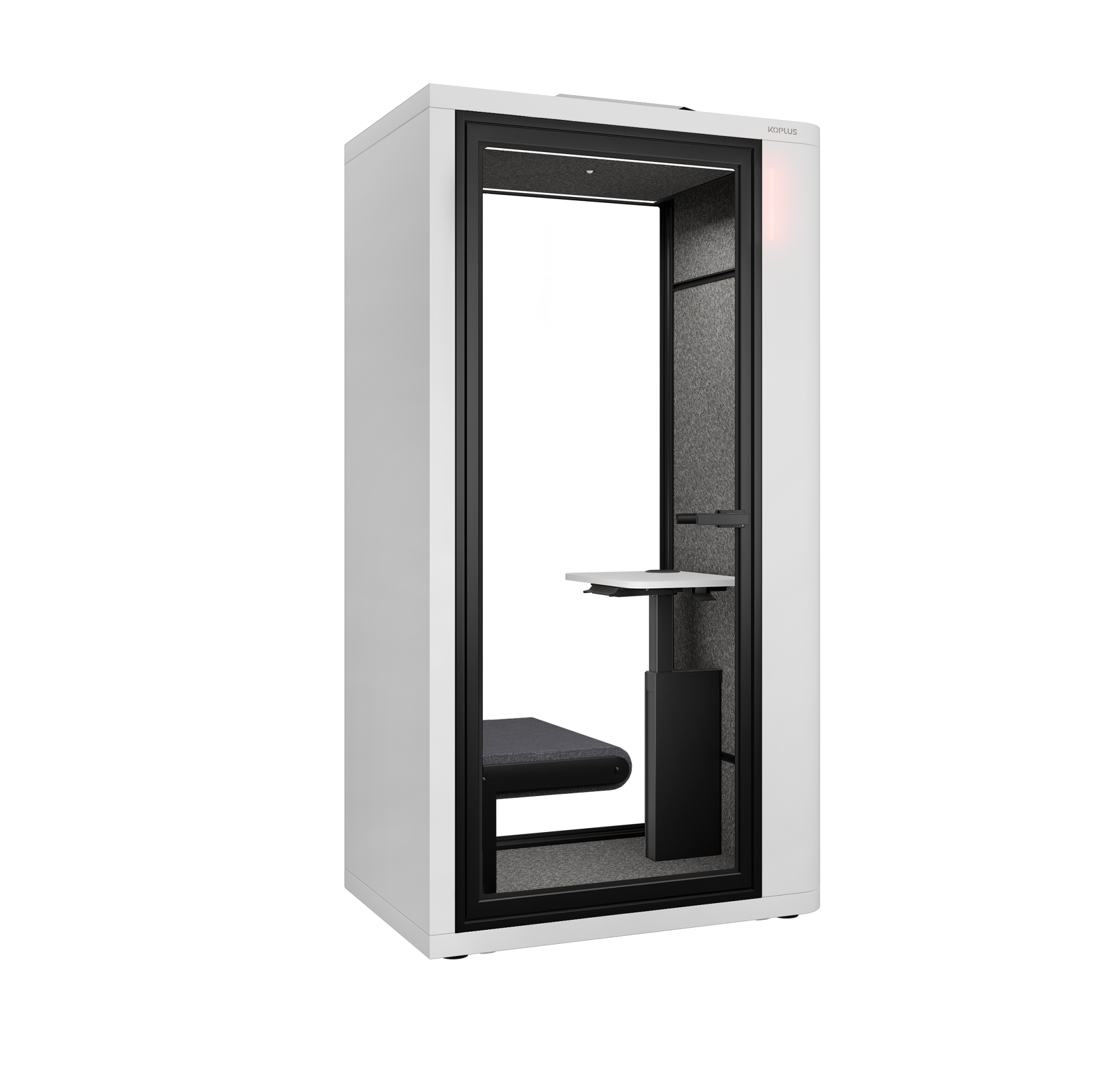

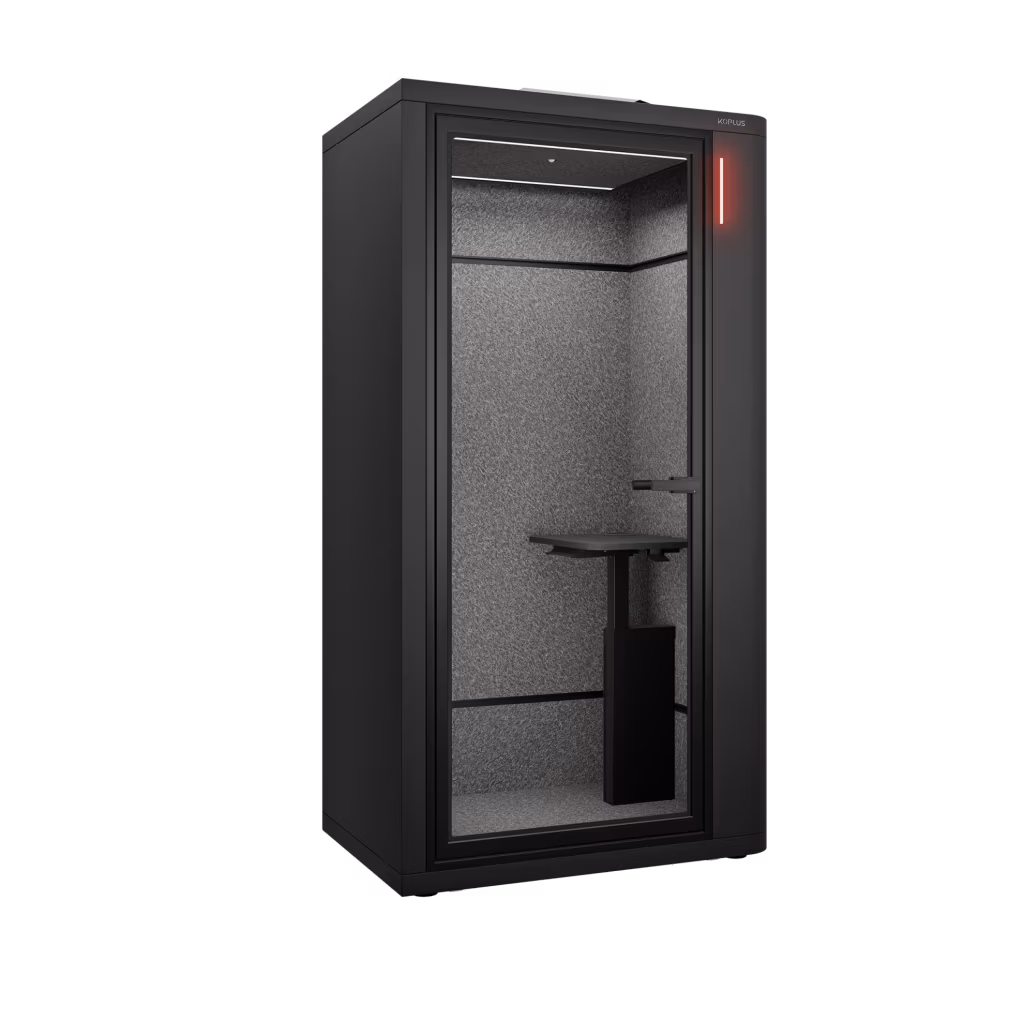

SAM Single
Exterior Dimension : W1198 x D950 x H2316
Interior Dimension : W1018 x D808 x H2064

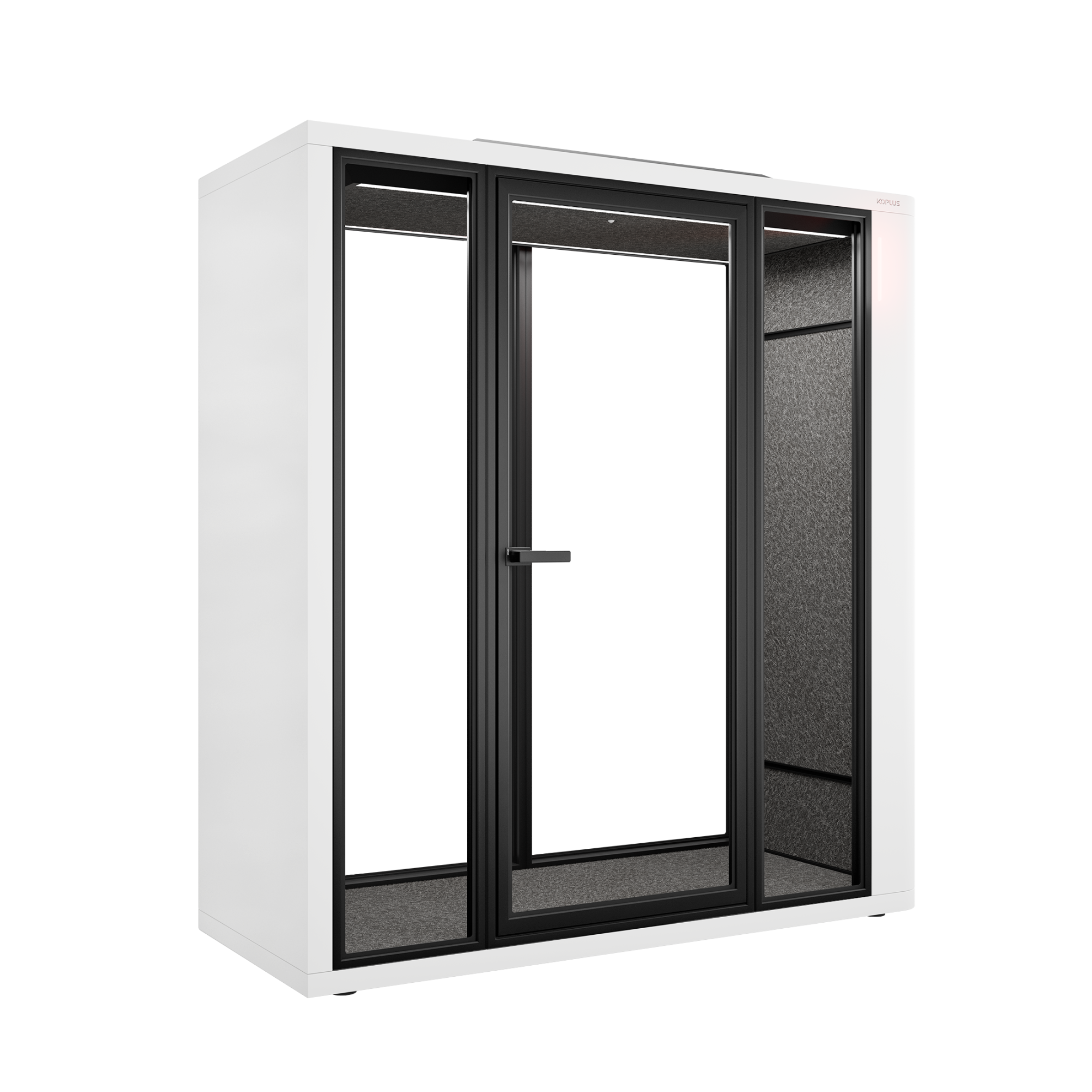

SAM Medium
Exterior Dimension : W2100 x D950 x H2316
Interior Dimension : W1920 x D808 x H2064
SAM Large
Exterior Dimension : W2260 x D1905 x H2316
Interior Dimension : W2080 x D1763 x H2064
Acoustic Performance
Certified Class A under ISO 23351-1, the international standard for speech level reduction.
Ventilation (Maximum)
SAM Single : 288 (m³/h), 170 CFM
SAM Medium : 576 (m³/h), 339 CFM
SAM Large : 1008 (m³/h), 593 CFM
Power Outlets
SAM Single : 3 AC power outlets, 1 USB-A & 2 USB-C ports, 1 LAN port (RJ45)
SAM Medium : 3 AC power outlets, 1 USB-A & 2 USB-C ports, 1 LAN port (RJ45)
SAM Large : 4 AC power outlets, 1 USB-A & 2 USB-C ports, 1 LAN port (RJ45)
The power outlet and components are UL, PSE, and CE certified.
Input : 110 ~ 240 VAC, 15A, 50 ~ 60 Hz
Power & Data ConnectionThe standard power cord and data cables are routed from the bottom.
Occupancy Light
Integrated on the exterior of the booth and activated by a motion sensor, the occupancy light shows a red signal when the booth is in use.

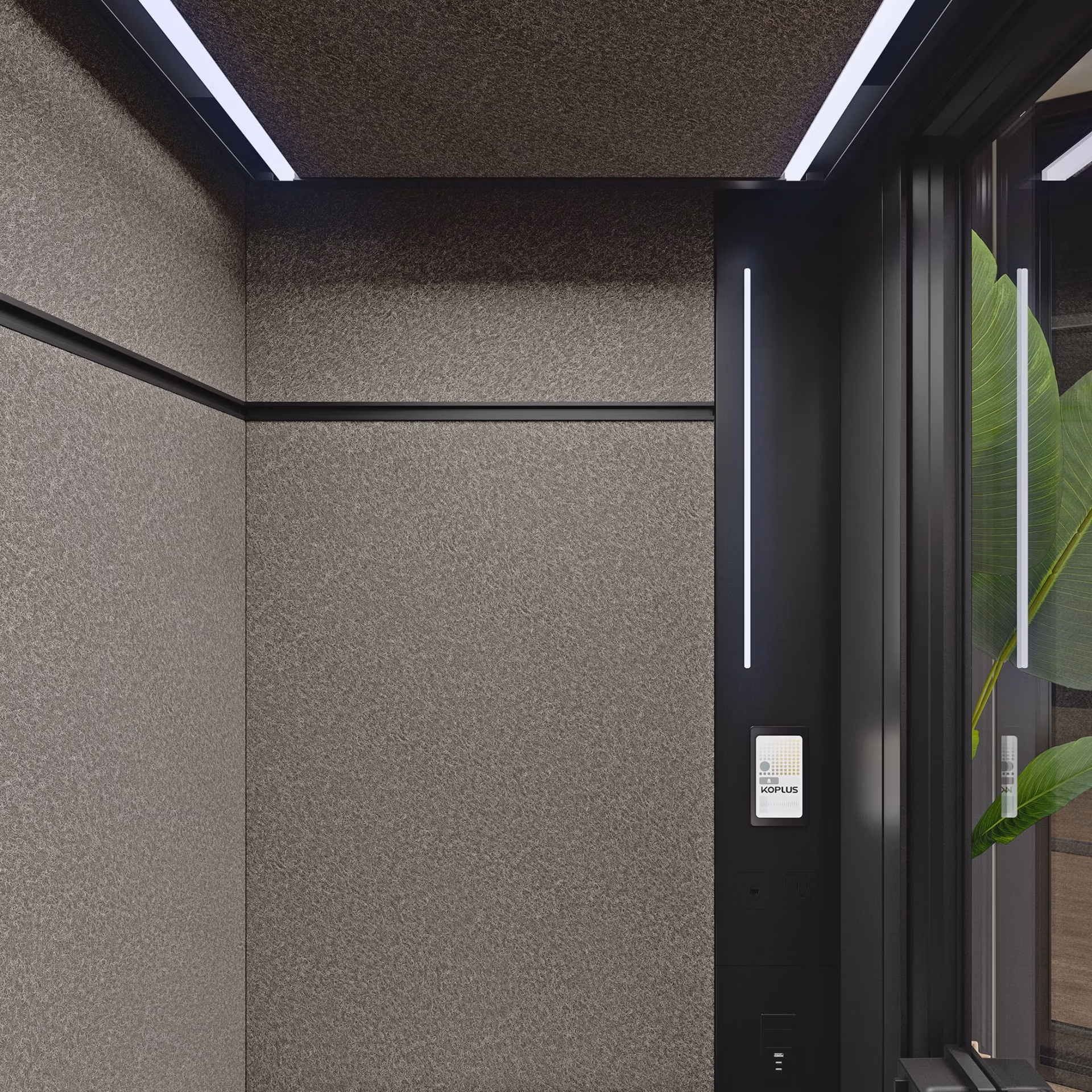

Personalised Lighting
The booth is equipped with LED lighting, which are automatically activated upon entry and switched off after a preset period of inactivity.The auto-off interval can be set to 15, 45, 300, or 900 seconds.For a more personalised experience, users can also adjust both the brightness and colour temperature of the LED lighting, with a range from 2700K to 6500K.Door
Orientation
SAM Single STANDARD door orientation is LEFT-handed.
SAM Medium STANDARD door orientation is RIGHT-handed.
SAM Large STANDARD door orientation is RIGHT-handed.
When needed, the orientation can be changed on site by trained staff.
Magnetic Door Handle
The magnetic door handle comes standard without a lock. A lockable handle is available upon request.
Seismic Safety
For regions where seismic safety is required, seismic plates and bolts are available upon request.
Fire Safety
A pre-prepared opening is available for onsite sprinkler installation on SAM Series. Please contact us for further details.Glass SafetyThe glass is laminated which prevents the glass panels from shattering for users safety.
Maintenance
All electronic parts can be easily replaced.There is no need to take apart the SAM unit to access the maintenance compartment. Please send us an email or notify your local dealers for more service information.
Warranty
SAM provides a limited 5 year warranty on structure and 2 year warranty on all electrical and/or expendable parts including fan, power outlets, power cable, gas lift, etc.
